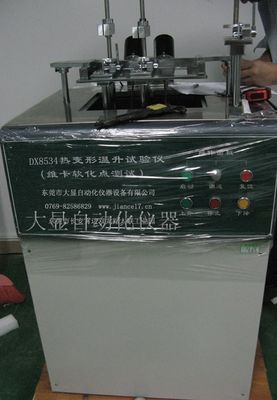

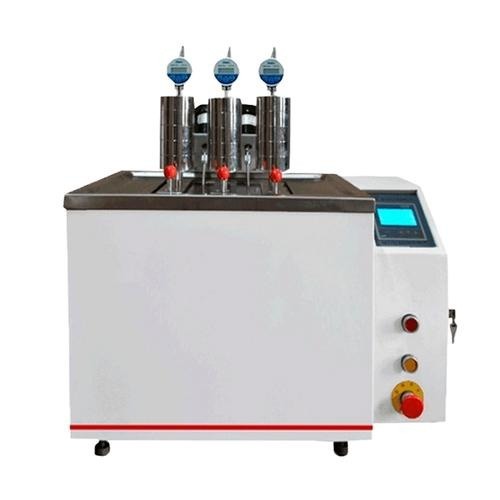

DX8534 Thermal Deformation and Vicat Softening Point Temperature Tester (Micro Control)
DX8534 Thermal Deformation and Vicat Softening Point Temperature Tester (Micro Control)
descrição
Tipo:
Máquina de teste
Precisão:
3%
Suporte personalizado:
OEM, ODM, OBM, reengenharia de software
Poder:
1
Classe de proteção:
IP65
Tensão:
220 v
Garantia:
1 ano
Logotipo/design gráfico:
Impressão térmica de transferência
Erro máximo de controle de temperatura::
± 12 ℃/6 minutos (teste de deformação a quente) ± 5 ℃/6 minutos (teste Vicat)
Meio de aquecimento:
ÓLEO DE SILICONE
Peso de pesos:
68g±1g
Método de resfriamento:
resfriamento natural ou resfriamento a água (máquina tipo C)
Principal fonte de alimentação:
220V+10%, 15A, 50HZ
Dimensões externos::
520 420 1100mm
Taxa de aquecimento:
A=5℃/6min B=12℃/6min;
Erro máximo de medição de temperatura:
± 0,5 ℃
Transtorno do Vicat:
1 mm.
Erro de resolução de deformação:
0,005 mm
Destacar:
micro control thermal deformation tester
,
Vicat softening point temperature tester
,
lab testing machine with micro control
Compliant with standards:
Complies with the requirements of GB/T 8802-2001, ISO 2570 rigid polyethylene (PVC), GB/T 1633, GB/T 1634, ISO 75-1987 (E), ISO 306-1987 (E) and other standards.
Compliant with standards:
GB/T 1633-2000 (idt ISO 306:1994) Determination of Vicat Softening Temperature (VST)
GB/T 1634.1-2004 (idt ISO75-2:2003) Plastics Determination of Load Deformation Temperature (General Test Method)
GB/T 1634.2-2004 Plastics Determination of Load Deformation Temperature (Plastics, Hard Rubber, and Long Fiber Reinforced Composite Materials)
GB/T 1634.3-2004 Plastics Determination of Load Deformation Temperature (High Strength Thermosetting Laminated Materials)
GB/T 8802-2001 (eqv ISO 2507:1995) Thermoplastic pipes and fittings - Determination of Vicat softening temperature
Applicable scope:
Mainly used for the determination of thermal deformation and Vicat softening point temperature of polymer materials (such as plastics, rubber, nylon, electrical insulation materials, etc.). Applicable to universities and colleges, research institutions, and product quality supervision and inspection units.
Main performance indicators:
Test range: room temperature~300 ℃;
Number of sample racks: 2, 3, and 6;
Heater power: 4KW;
Vicat Disturbance: 1mm.
Deformation resolution error: 0.005mm
Heating rate: A=5℃/6min B=12℃/6min;
Maximum temperature measurement error: ± 0.5 ℃
Maximum temperature control error: ± 12 ℃/6 minutes (hot deformation test) ± 5 ℃/6 minutes (Vicat test)
Weight of weights(i.e. load rod, standard indenter, Sensor probe, tray, screw): 68g±1g
Cooling method: natural cooling or water cooling (C-type machine)
External dimensions: 520×four hundred and twenty×1100mm;
Main power supply: 220V+10%, 15A, 50HZ;
A set of experimental application software for the Chinese version of the operating system of the thermal deformation and Vicat softening point temperature tester
Our Services
1. Ensure the high quality of the product.
2. Packaging can be done according to customer requirements and pictures can be attached before shipment.
3. Transport professional documents
4. Provide professional product consultation before sales, and we guarantee to answer any professional technical questions you may have within 48 hours; Provide timely product technical services after sales, and provide solutions within three working days.
5. Our engineers provide professional after-sales service
6. The warranty period is 12 months. During the warranty period, we are responsible for providing free maintenance, upkeep, and replacement of damaged and defective parts (under normal use) for the user's equipment. After the free warranty ends, service fees will be charged at your discretion.
7.Provide the fastest response to maintenance and assistance requests from users. After the user submits a maintenance request, ensure to provide professional technical support in the shortest possible time and in the fastest way possible.
